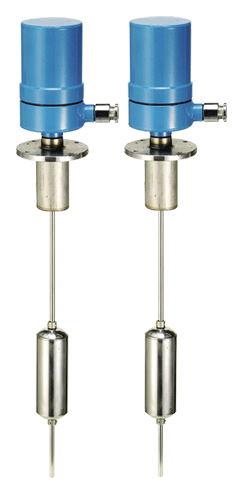

The spring assists the buoyancy force change
created as the liquid rises around the suspended
displacer element. A liquid level change will allow a spring movement to operate the switch. With falling
liquid level the lower displacer element has to be
uncovered before the switch will reset.


  Displacement type level switch are widely used for
Coaltar fuel tanks, Heavy fuel oil tanks, Setting tanks, Sludge tanks, Fresh water tanks, Lub.oil tanks,
D.O tanks and others.

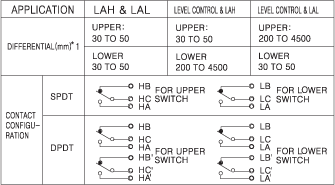

  Contact : electrical micro switch, change contact,
SPDT, DPDT
Switch rating : AC 250V/15A, AC 480V/15A,
DC 30V/6A Max. Pressure : 10 Kg/㎠
Max. Temperature : 180 ℃
IP Rating : IP 56
Connecting Size : 5K100A (STD.)
Material - Body, Cover : ALC, SS400
- Flange : SS400, SUS304
- Displacer : SUS304
- Guide Pipe : SUS304
