Home > Flat & Reflex Type Glass Level Gauge

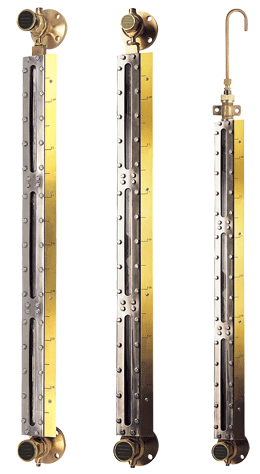

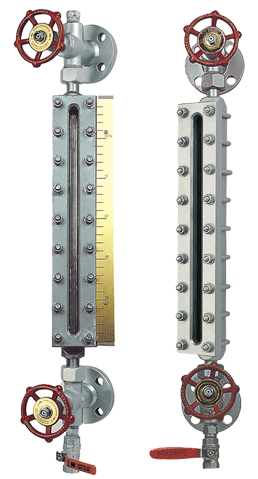

  Flat type is used for marine oil tanks, excluding hose of flash point of 60℃ below. An excellent observation of colorless liquid level is provided through reflection of several parallel grooved glass.   Reflex type level gauge consists of a rugged body, glass and cover securely fixed by u-bolts to endure high pressure. This type features several parallel grooves cut into the glass surface that is in contact with liquid.
And transparent liquid can be clearly observed.

Model Type Valve type Connection
size
Design
pressure
Max
temp′
Material Center
of Center
Upper Lower Valve Channel Glass

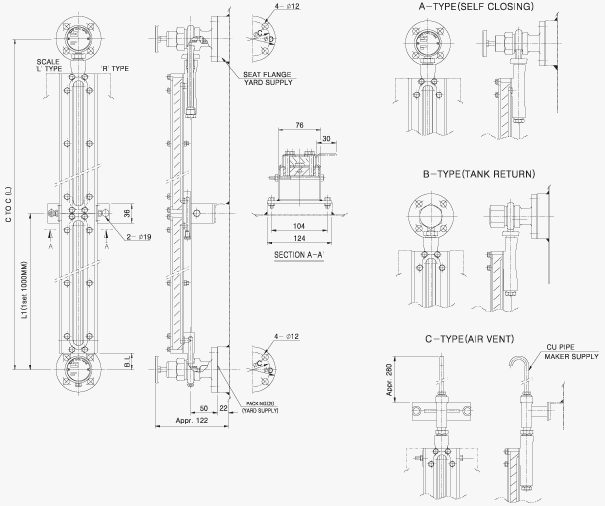

DLG-F A Self-closing self- closing JIS
5K20A,25A
3㎏/㎠ 150°C

BC6

SUS304 Borosilicate 275~5100
(m/m)
B Tank return self- closing JIS
5K20A,25A
3㎏/㎠ 150°C BC6 SUS304 Borosilicate
C Top vent self- closing JIS
5K20A,25A
3㎏/㎠ 150°C BC6 SUS304 Borosilicate
Model Type Valve type Connection
size
Design
pressure
Max
temp′
Material Center
of Center
Upper Lower Valve Channel Glass

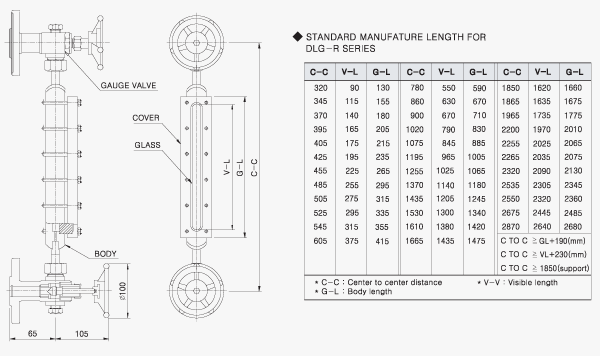

DLG-F A Ball Ball ANSI 1”150# 20㎏/㎠ 200°C

SUS304

SUS304 SUS304 320~2870
(m/m)
B Self Self SUS304 SUS304 SUS304
A Ball Ball ANSI 1”150# 20㎏/㎠ 200°C SUS304 SUS304 SUS304
B Self Self SUS304 SUS304 SUS304

·Please contact our factory if other specification are required
