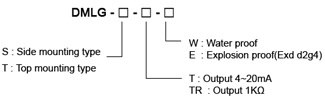

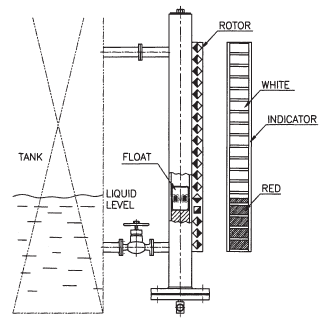

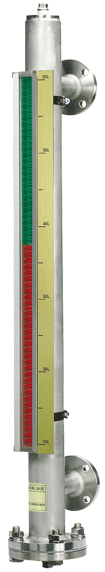

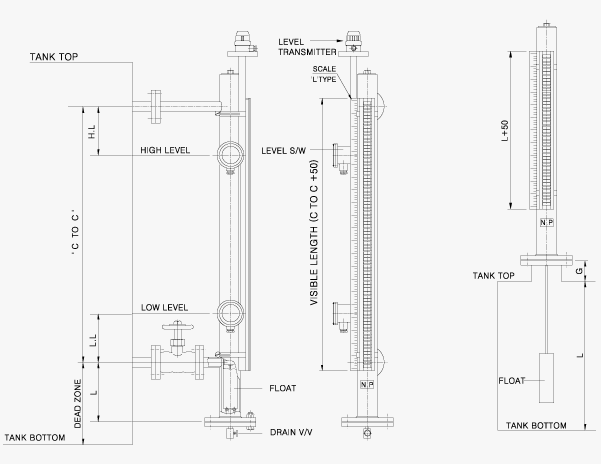

·Layer consist of individual small magnetic flag, which half color red and the other half white and can be turned each by each, and it is mounted to the front chamber. As liquid level rises, a magnet-equipped float withch the unit inverts the magnetic flags in the external indicator to “color-side-out.” The flags remain magnetically interlocked in a column until again inverted to “contrasting-side-out” by the float as liquid level falls. Liquid level is indicated by the junction of the “color” and “contrasting” portions of the column.                           Symbol Mounting method Connection size Working condition Specific grave Accuracy Material Press Temp Chamber Float Flag Flag Chamber DMLG-S-□-□ Side-Side JIS 5K 25A 5kg /㎠ 200℃ Over 0.8 ±10m/m SUS304 SUS304 Polycarbonate Aluminum DMLG-T-□-□ Top JIS 5K 100A 0r 125A 5kg /㎠ 200℃ Over 0.8 ±10m/m SUS304 SUS304 Polycarbonate Aluminum   Description Module Output Contact rating Contact form Power source Accuracy Material No.of point Mesasuring range Max.working temp Enclosure Housing Transmitter Level swich Reed swich Dry contact 125VAC, 0.5A S.P.D.T (No,Nc,Com) N/A ±5m/m AC N/A Max.6 N/A 120℃ Weather proof Level transmitter Reed swich and resistors 4-20mA DC Two-wire N/A N/A DC 24V ±1.5% of F.S AC SUS304 N/A 400 ~ 5000m/m 120℃ Weather proof
