¤ýHome > I.S Barrier / Level Indicator

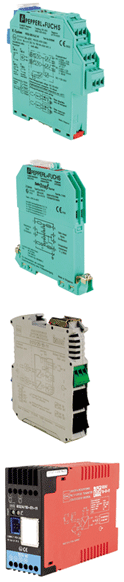

  I.S BARRIER
(MODEL:KFD2-CR-EX1.30 200)
¡¤1 Channel
¡¤Input EEx ia ¥±C
¡¤DC 24V supply voltage
¡¤Output:max. 1kohm allowable load

I.S BARRIER (MODEL:Z779)
Technical Data Ch.1 Ch.2
¡¤Fuse rating mA 50 50
¡¤Barrier Voltages
Vmax 28 28
¡¤End-to-End Resistance(ohms)
Nom 301 301
Max 327 327
¡¤Safety Parameters
Uz volts 28 28
I max milliamps 93 93
V max watts 0.65 0.65

Technical Data Ch.1 Ch.2
¡¤IIC Cable Parameters, max combination
C§Þ 0.13 0.13
L mH 4.2 4.2
L/R ¥ìH/ohm 55 55
¡¤Provisional
[EExia]IIC Certificate No. Ex93C2412


¡¤Model: DH-110A
¡¤Size: 110¡¿110mm square
¡¤Mounting method: panel front mounting
¡¤Input signal: 4~20mA
¡¤Internal resistance: 1.5§Ù
¡¤Accuracy: ¡¾1.5% of F.S
¡¤Scale range: 0~100%of Owner requirement
¡¤Indicating angle: 250deg
¡¤Color: black
¡¤Weight: 450g
¡¤Temperature: 0~40¡É
¡¤Application: Panel and local indicator

¡¤Model: TME-100 / 150
¡¤Size: 30¡¿100mm / 50.7¡¿152.3mm
¡¤Mounting method: panel front mounting
¡¤Input signal: DC4~20mA
¡¤Internal resistance: 2.5§Ù
¡¤Accuracy: ¡¾1.5% of F.S
¡¤Scale length: 100mm
¡¤Scale range: 0~100% of F.S or Owner reuirement
¡¤Indicating angle: 250deg
¡¤Color: black
¡¤Weight: 450g
¡¤Temperature: 0~40¡É
¡¤Application: Panel and local indicator
