> Tubular Type Glass Level Gauge
JIS F 7211
JIS F 7212
·Tubular type level gauges are suitable for nonflammable liquids in ship tanks
JIS Code
Type
Valve type
Connection
size
Material
Center to
center
Design
pressure
Working
temp’
Upper
Lower
Protector
Valve

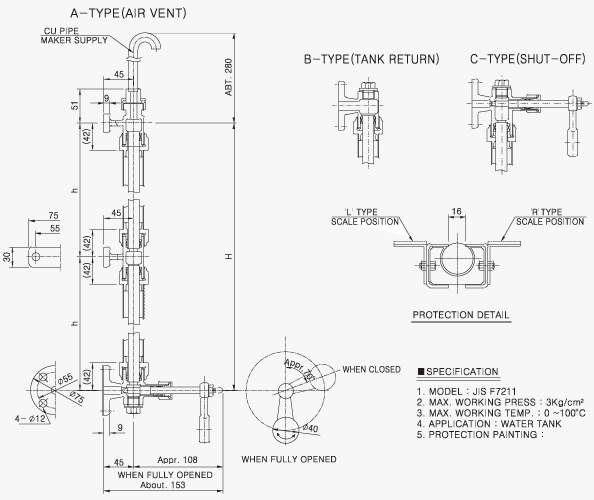

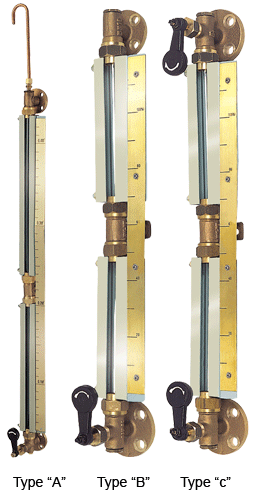

JIS F7211
A
Vent
shut
-off
5K 10A
SS41
BC6
325 ~
3765
(mm)
0~3㎏/㎠
0~100°C
B
tank
return
shut
-off
C
shut
-off
shut
-off
·Please contact our factory if other specification are required
JIS Code
Type
Valve type
Connection
size
Material
Center to
center
Design
pressure
Working
temp’
Upper
Lower
Protector
Valve

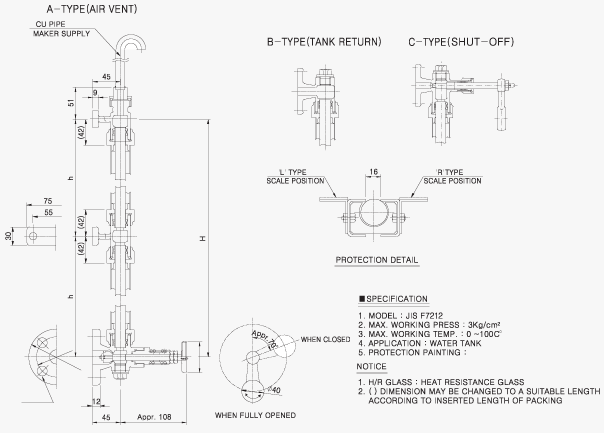

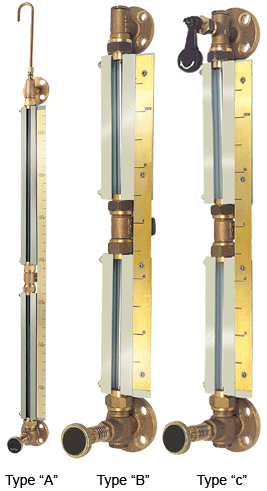

JIS F7212
A
Vent
self-
closing
10K 10A
(16K 10A)
SS41
BC6
325 ~
3765
(mm)
0~3㎏/㎠
0~100°C
B
tank
return
self-
closing
C
shut
-off
self-
closing
·Please contact us if you need further details.
