Home > Reed Switch Type Float Level Switch

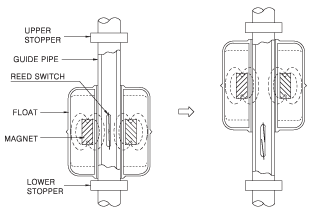

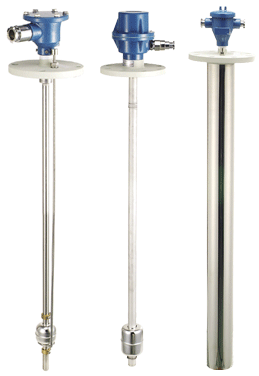

Top mounting type level switch consists of a guide pipe, floats, and a terminal box. Magnets are fixed in floats and reed switches which are located at each alarm point fixed in guide pipe. As a float rises or lowers with liquid level, the magnetic field generated from within the float actuates a thematically sealed, magnetic reed switch mounted within the stem. When the liquid reaches alarm level, the reed switch opens or closes its contact.


  Displacement type level switch are widely used for
Coaltar fuel tanks, Heavy fuel oil tanks, Setting tanks, Sludge tanks, Fresh water tanks, Lub.oil tanks,
D.O tanks and others.


  Fresh water tank, Heavy Fuel oil tank,
D.O tank, Sludge tank, Sewage tank, etc.






A-CONTACT A-CONTACT
   NORMAL    ALARM/CONTROL    NORMAL    ALARM/CONTROL
 LAHH : HIGH-HIGH LEVEL ALARM
 LAH : HIGH LEVEL ALARM
 LAL : LOW LEVEL ALARM
 LALL : LOW-LOW LEVEL ALARM
 LAHH : HIGH-HIGH LEVEL CONTROL
 LAH : HIGH LEVEL CONTROL
 LAL : LOW LEVEL CONTROL
 LALL : LOW-LOW LEVEL CONTROL
